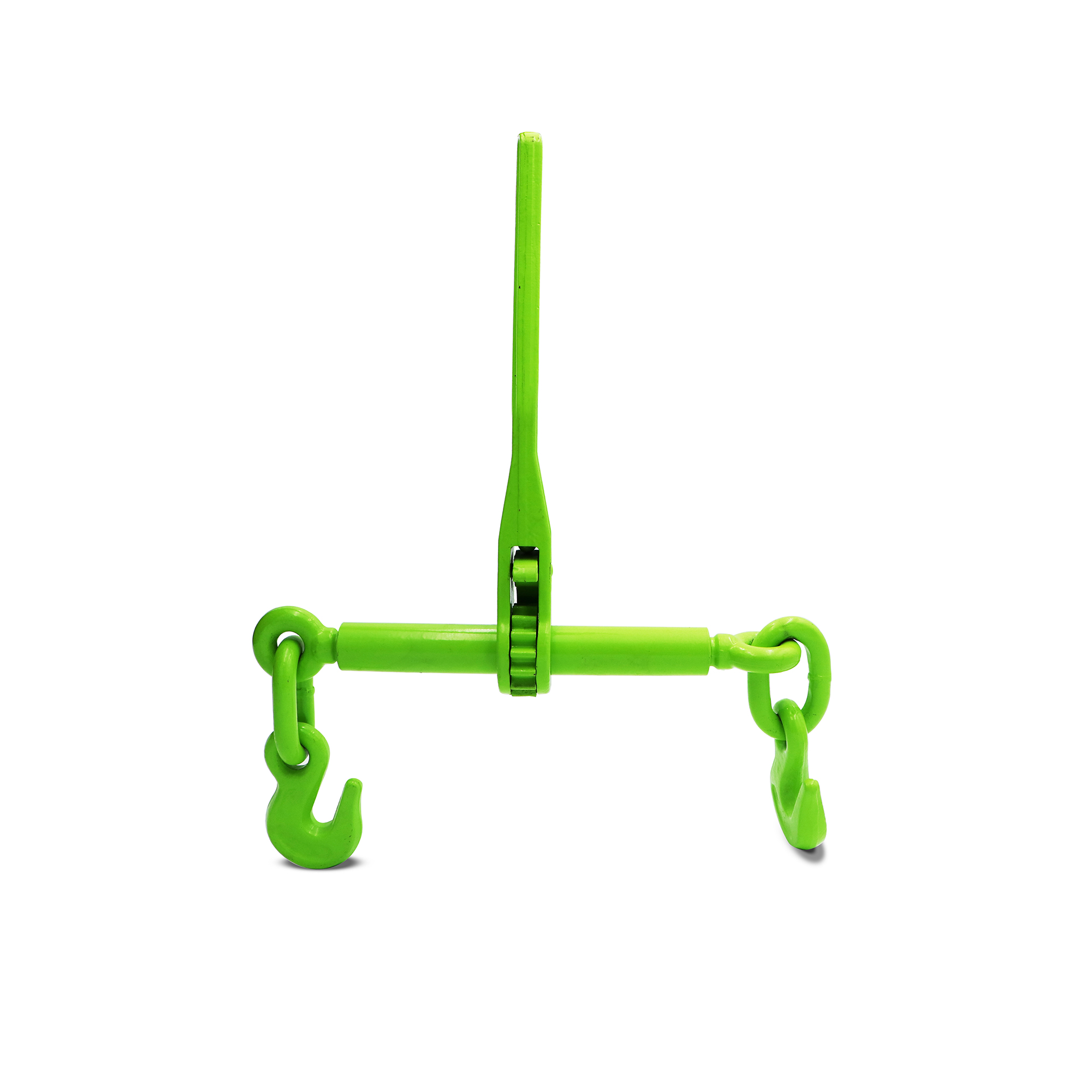

Ratchet Type Load Binder
| Part / Product Name | Ratchet Type Load Binder |
| Min-Max Chain Size (in.) | Barrel Length (in.) | Dimensions (in.) A B C D E F G |
Handle Length (in.) | Minimum Ultimate Strength (lbs) | Proof Load lbs | Take up (in.) | Weight Each (lbs.) | WLL (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1/2-5/8 | 9.92 | 1.30 2.60 25.90 33.90 29.57 34.57 0.72 |
13.92 | 46000 | 26000 | 8.00 | 14.38 | 13000 |
| 5/16-3/8 | 9.92 | 1.30 2.60 23.78 31.78 26.14 32.14 0.47 |
13.92 | 19000 | 10800 | 8.00 | 10.5 | 5400 |
| 3/8-1/2 | 9.92 | 1.30 2.60 23.82 31.82 26.93 34.93 0.63 |
13.92 | 33000 | 18400 | 8.00 | 12.20 | 9200 |
| 1/4-5/16 | 6.30 | 0.89 1.77 17.40 22.04 19.20 23.84 0.35 |
7.16 | 7800 | 4400 | 4.65 | 3.52 | 2200 |
